How can I split a CFrameWnd?

CSplitterWnd

CFrameWnd can have only one window frame. CSplitterWnd class can be used in CFrameWnd to create splitter views in main frame window.

CSplitterWnd::Create

To create a dynamic splitter window, call the Create member function.

virtual BOOL Create(
    CWnd* pParentWnd,
    int nMaxRows,
    int nMaxCols,
    SIZE sizeMin,
    CCreateContext* pContext,
    DWORD dwStyle = WS_CHILD | WS_VISIBLE | WS_HSCROLL | WS_VSCROLL | SPLS_DYNAMIC_SPLIT,
    UINT nID = AFX_IDW_PANE_FIRST);

CSplitterWnd::CreateStatic

To create a static splitter window, call the CreateStatic member function.

virtual BOOL CreateStatic(
    CWnd* pParentWnd,
    int nRows,
    int nCols,
    DWORD dwStyle = WS_CHILD | WS_VISIBLE,
    UINT nID = AFX_IDW_PANE_FIRST);

CSplitterWnd::CreateView

Creates the panes for a static splitter window.

virtual BOOL CreateView(
    int row,
    int col,
    CRuntimeClass* pViewClass,
    SIZE sizeInit,
    CCreateContext* pContext);

CSplitterWnd::SetRowInfo

Call to set the specified row information.

void SetRowInfo(
    int row,
    int cyIdeal,
    int cyMin);

CSplitterWnd::SetColumnInfo

Call to set the specified column information.

void SetColumnInfo(
    int col,
    int cxIdeal,
    int cxMin);

CSplitterWnd::RecalcLayout

Call to redisplay the splitter window after adjusting row or column size.

virtual void RecalcLayout();

CSplitterWnd demo

This source code only shows CSplitterWnd part of CMainFrame source file. Rest of the code can be taken from our SDI doc/view demo code.

 class CMainFrame : public CFrameWnd

 {

 protected:

   CMainFrame();

   DECLARE_DYNCREATE(CMainFrame)

 public:

   virtual BOOL PreCreateWindow(CREATESTRUCT& cs);

   virtual BOOL OnCreateClient(LPCREATESTRUCT lpcs, CCreateContext* pContext);

   void OnSize(UINT nType, int cx, int cy) ;

   virtual ~CMainFrame();

 protected:  /* control bar embedded members */

   CStatusBar  m_wndStatusBar;

   CToolBar    m_wndToolBar;

   CSplitterWnd m_mainSplitter;

 protected:

   BOOL m_bInitSplitter;

   afx_msg int OnCreate(LPCREATESTRUCT lpCreateStruct);

   DECLARE_MESSAGE_MAP()

 };

 /* CMainFrame message handlers */

 BEGIN_MESSAGE_MAP(CMainFrame, CFrameWnd)

   ON_WM_CREATE()

   ON_WM_SIZE()

 END_MESSAGE_MAP()

 CMainFrame::CMainFrame()

 {

   m_bInitSplitter = false;

 }

 CMainFrame::~CMainFrame()

 {

 }

 int CMainFrame::OnCreate(LPCREATESTRUCT lpCreateStruct)

 {

   if (CFrameWnd::OnCreate(lpCreateStruct) == -1)

     return -1;

   if (!m_wndToolBar.CreateEx(this, TBSTYLE_FLAT, WS_CHILD | WS_VISIBLE | CBRS_TOP

     | CBRS_GRIPPER | CBRS_TOOLTIPS | CBRS_FLYBY | CBRS_SIZE_DYNAMIC) ||

     !m_wndToolBar.LoadToolBar(IDR_MAINFRAME))

   {

     TRACE0("Failed to create toolbar
");

     return -1;

   }

   if (!m_wndStatusBar.Create(this) ||

     !m_wndStatusBar.SetIndicators(indicators,

       sizeof(indicators)/sizeof(UINT)))

   {

     TRACE0("Failed to create status bar
");

     return -1;

   }

   m_wndToolBar.EnableDocking(CBRS_ALIGN_ANY);

   EnableDocking(CBRS_ALIGN_ANY);

   DockControlBar(&m_wndToolBar);

   return 0;

 }

 BOOL CMainFrame::PreCreateWindow(CREATESTRUCT& cs)

 {

   if( !CFrameWnd::PreCreateWindow(cs) )

     return FALSE;

   return TRUE;

 }

 BOOL CMainFrame::OnCreateClient(LPCREATESTRUCT lpcs, CCreateContext* pContext)

 {

   /* calculate client size */

   CRect cr;

   GetWindowRect( &cr );

   /* Create the main splitter with 1 row and 2 columns */

   if ( !m_mainSplitter.CreateStatic( this, 1, 2 ) )

   {

     MessageBox( "Error setting up m_mainSplitter", "ERROR", MB_OK | MB_ICONERROR );

     return FALSE;

   }

   /* The views for each pane must be created */

   if ( !m_mainSplitter.CreateView( 0, 0, RUNTIME_CLASS(CSplitterDemoView),

     CSize(cr.Width()/2, cr.Height()), pContext ) )

   {

     MessageBox( "Error setting up splitter view", "ERROR", MB_OK | MB_ICONERROR );

     return FALSE;

   }

   if ( !m_mainSplitter.CreateView( 0, 1, RUNTIME_CLASS(CSplitterDemoView),

     CSize(cr.Width()/2, cr.Height()), pContext ) )

   {

     MessageBox( "Error setting up splitter view", "ERROR", MB_OK | MB_ICONERROR );

     return FALSE;

   }

   /* change flag to show splitter created */

   m_bInitSplitter = true;

   /*return TRUE instead of the parent method since that would
	 not show our window */

   return TRUE;

 }

 void CMainFrame::OnSize(UINT nType, int cx, int cy)

 {

   CFrameWnd::OnSize(nType, cx, cy);

   CRect cr;

   GetWindowRect(&cr);

   if (m_bInitSplitter && nType != SIZE_MINIMIZED )

   {

     m_mainSplitter.SetRowInfo( 0, cy, 0 );

     m_mainSplitter.SetColumnInfo( 0, cr.Width() / 2, 50);

     m_mainSplitter.SetColumnInfo( 1, cr.Width() / 2, 50);

     m_mainSplitter.RecalcLayout();

   }

 }

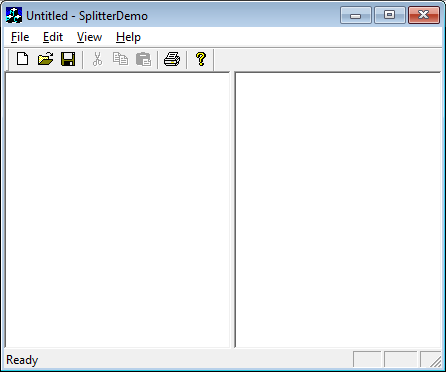

CSplitterWnd output
