What is the difference between SDI and MDI Application?
SDI and MDI
MFC Document View Architecture can have two types of applications. SDI and MDI. SDI stands for Single Document Interfce where as MDI stands for Multiple document interface. Making a SDI or MDI application requires multiple classes. VC++ editor provides "Application Wizard" for users which takes care of the file and class creations of the project. User needs to select verious settings when Wizard progress one by one and finally it gives a finish button to end the process. We will see how a SDI and MDI application can be made and run in step by step.
Single Document Interfaing (SDI)
This type of application can deal with a single document and single view of the document at one point of time. There is no way to open another document in the same application. Only way to open another document is to launch another instance of the application and open the anothe document. Notepad, Wordpad are such application in Windows.
SDI project creation using wizard
Select MFC Appwizard type of your project in VC++. Give the name of the project.
Step 1: Application Single document type. Support Doc /View architechure? Language selection for the resources.
Step 2: Add database support to the project? If yes select the source.
Step 3: Compound document support? Compound file and ActiveX support.
Step 4: Support for toolbars, status bars, and verious controls, recent file list.
Step 5: Style of the project MFC/Windows Explorer. Source comments, MFC shared library or static library.
Step 6: Summary of class file names will be generated.
Final step: Summary of class file names will be generated.
Files and classes:
- CAboutDlg- About dialog
- CChildFrame- Child frame window
- CMainFrame- Main frame window of SDI App
- CSDIDemoApp- MDI MFC app class

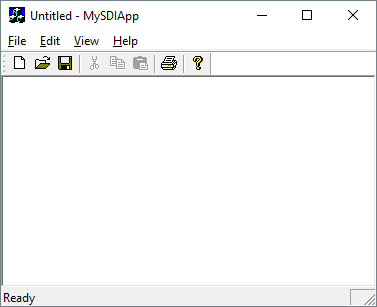

Running SDI Application.
Multiple Document Interfae (MDI)
This type of application can deal with multiple documents and views of the documents at one point of time. Thus many documents can be opened and can be edited at any point of time. There is no need to open new application instance to open a new document. Visual Studio/Visual C++ editor and many other source code editors are good example of this MDI design.
MDI project creation using wizard
Select MFC Appwizard type of your project in VC++. Give the name of the project.
Step 1: Application Single document type. Support Doc /View architechure? Language selection for the resources.
Step 2: Add database support to the project? If yes select the source.
Step 3: Compound document support? Compound file and ActiveX support.
Step 4: Support for toolbars, status bars, and verious controls, recent file list.
Step 5: Style of the project MFC/Windows Explorer. Source comments, MFC shared library or static library.
Step 6: Summary of class file names will be generated.
Final step: Summary of class file names will be generated.
Files and classes:
- CAboutDlg- About dialog
- CChildFrame- Child frame window of each MDI
- CMainFrame- Main frame window of MDI App
- CMDIDemoApp- MDI MFC app class
- CMDIDemoDoc- MDI MFC Doc class
- CMDIDemoView- MDI MFC View class

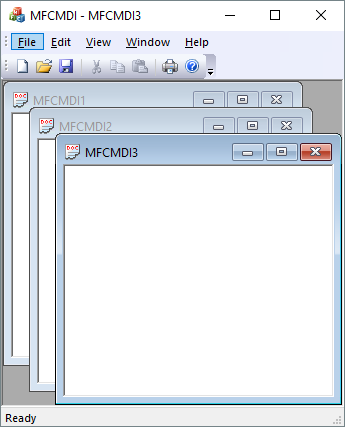

Running MDI Application.
